Description

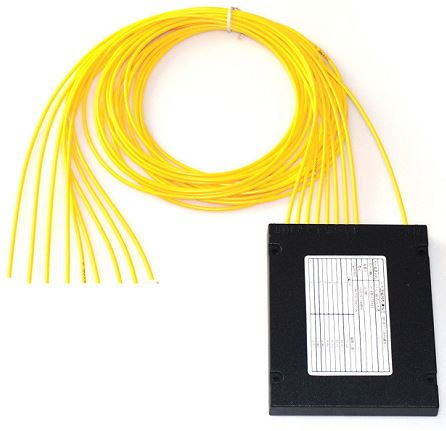

1×8 Fiber PLC Splitter, ABS Box Type, Singlemode
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products or network cabinets.
| Features | Application |
| Configuration Type: 1× 8, SC/APC connector | Optical Signal Distribution |
| 3.0mm ITU G.657A1 for fiber input/output | Data Communications |
| Low insertion loss = 10.7dB | Lan and CATV System |
| Low polarization dependent loss (PDL) = 0.3dB | FTTX Deployment |
| Operating bandwidth: 1260 - 1650nm | FTTH Network |
| Compact design, suitable for installation in optical equipments | Passive Optical Networks (PON) |
| Wide Operating Temperature: -40 - 85°C, support industry standard applications | Measuring System and Laser System |
| High reliability and stability, Telecordia GR-1221/1209 compliant | DWDM and CWDM Systems |
Telcordia 1209 & 1221 Test Results
|
Name of the test
|
Condition
|
Duration
|
|
Temperature- Humidity aging
|
85°C and 85% RH
|
7 days
|
|
Vibration
|
10 - 55Hz, 1.52mm double amplitude, in three axes
|
1 hour
|
|
Component Impact
|
Test Impact of 500g (mass = 0.125kg), 1ms , half sine pulse
|
2 impacts
|
|
Temperature Cycling Test
|
-40 - 70°C, Ramp rate: 1°C /min, Dwell time > 15min
|
10 cycles
|
|
Temperature- Humidity cycling
|
-40 - 85°C , between 10°C and 23°C - 85% RH, at 85°C - 20%RH,
between °C and 85°C - maintain a linear change in RH,
below 10°C - uncontrolled RH
|
14 days
|
|
Water Immersion
|
43 ± 2°C , PH 5.5 ± 0.5
|
7 days
|
|
Fiber Side Pull test
|
0.23 kg load, 90° angle , 2 directions
|
5 seconds
|
|
Fiber Side Pull test
|
0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs
|
5 seconds
|
Compact design, suitable for installation in outdoor fiber distribution box
The ABS PLC splitter supports the protection for inner componnents, it is suitable for reliable installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN prefer to use the ABS PLC splitter together with outdoor fiber distribution box.
