Description
| Brand | NPORT |
|---|---|
| Material | Metal |
| Mounting Type | Rack Mount |
| International Protection Rating | IP00 |
| Controller Type | Push Button |
| Manufacturer | DOEL |
| Package Dimensions | 30 x 15 x 11 cm; 400 Grams |
| Item part number | N1-9802W |
| Hardware Interface | Ethernet |
| Special Features | Broadcast storm control and supporting store & forward operation Non-blocking & Non-head-of-line blocking full-wire speed forwarding Auto-learning networking configurations Built-in 8K MAC learning table, 4M bit buffer memory Filtering/Forwarding Rate 1000Mbps/1488,000pps 100Mbps/148,800pps; 10Mbps/14,880pps Supports packet length 1522 bytes/ Maximum 1536bytes, Jumbo frames 9.6K Status LEDs System Power, Link/Activity and Speed 1000M on line Network Transmission Media 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/STP, 1000BASE-T Cat. 5E UTP/STP. Operating Temperature 0 ~ 40 Storing Temperature -20 ~ 90 Humidity 10% ~90% RH (Non-condensing) Dimension (L x W x H) 263 x 160 x 44 mm ( 1U high) Power Consumption 14Watt Weight 0.8Kg, Supporting the flow control back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode All ports support Auto-MDIX function Being dedicated 2000Mbps Full-duplex bandwidth to the each port, toring Temperature -20 ~ 90 Humidity 10% ~90% RH (Non-condensing) Dimension (L x W x H) 263 x 160 x 44 mm ( 1U high) Power Consumption 14Watt Weight 0.8Kg Safety & EMI Certificates CE & FCC Smart plug & play Layer 2 Management Features Web-based Management HTTP Firmware Upgrade Tag-base VLAN - IEEE 802.1q QoS - DSCP (IPv4) and IEEE 802.1p Port-based access control - IEEE802.1x Port Aggregation - IEEE802.3ad Port Mirror Network Management SNMP/ MIB V1, V23 IGMP v1 & v2 Snooping, Providing 2 ports of 10/100/1000Mbps TX Switching port and 8 Giga Fiber SFP Slot. Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Complying with 802.3x Flow Control and 802.3az Green Ethernet, Broadcast Storm Control Performance Statistics Ping function Factory Default Configuration Backup & Restore System IP configuration |
| Batteries Required | No |
| Data Link Protocol | IEEE 802.3, Ethernet |
| Has Auto Focus | No |
| Programmable Buttons | No |
| Manufacturer | DOEL |

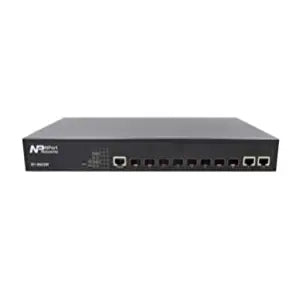

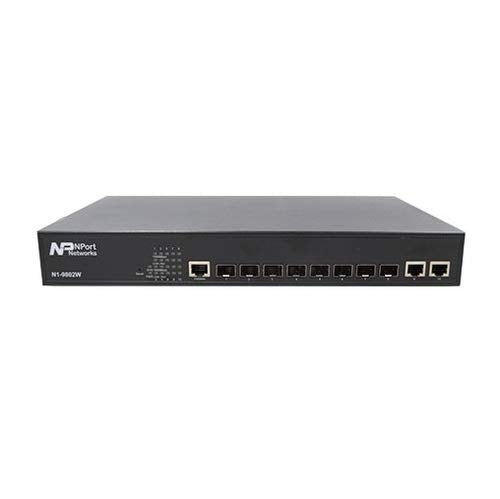

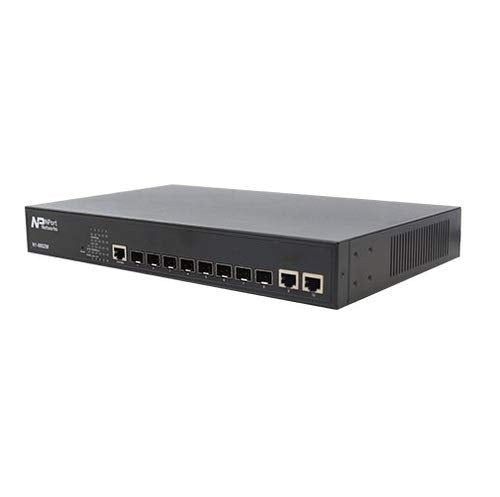

- Smart plug & play, NPort N1-9802W is 10 ports of 10/100/1000Mbps Gigabit switch which consists of 8 fiber SFP ports. The models design on digit and small metal case enables user to easily immigrate FTTH application and SNMP management as CPE device
- Dimension (L x W x H): 263 x 160 x 44mm (1U high)
- 100Mbpd/148,800pps, 10Mpbs/14,880pps -Built-in 8K bytes MAC learning table, 4M bytes buffer memory -Supports packet length 1522 bytes/Maximum 1536bytes -Jumbo frames: 9.6K -Network Transmission Media: -10Base-T Cat. 3,4,5, UTP/STP -100Base-TX cat. 5 UTP/STP -1000Base-T Cat. 5E UTP/STP -Operating Temperature 0°C~40°C -Storing Temperature - 20°C~90°C
- Broadcast storm control and store & forward operation -Non-blocking & Non-head-of-line blocking full wire speed forwarding
