| Brand |
TP-LINK |
| Color |
Black |
| Model |
T2600G-52TS (TL-SG3452) V3
|
| Interface |
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF |
| Fan Quantity |
Fanless |
| Power Supply |
100~240VAC, 50/60Hz |
| Dimensions ( W x D x H ) |
17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm) |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP |
| Access Control List |
L2～L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
| Max Heat Dissipation |
114.37 BTU/h |
| Bandwidth/Backplane |
104Gbps |
| Packet Forwarding Rate |
77.4Mpps |
| MAC Address Table |
16k |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |

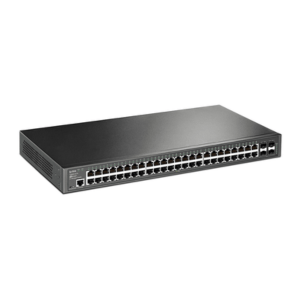

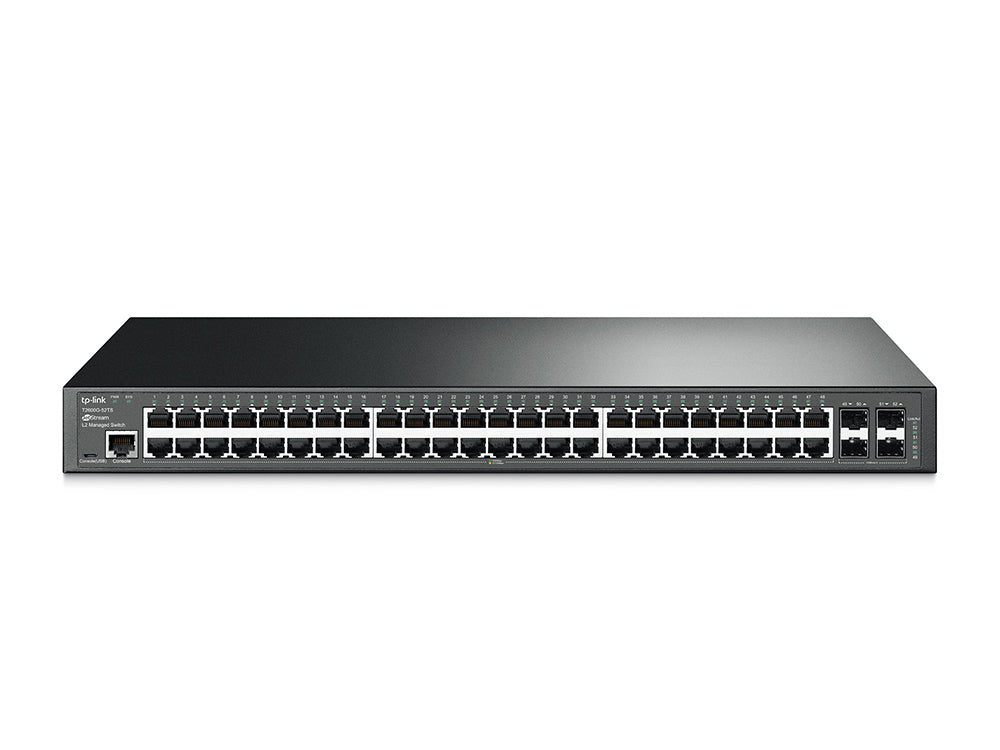

TP-Link JetStream Gigabit L2 managed switch T2600G-52TS provides 48 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-Link JetStream 48-Port Gigabit L2 managed Switch T2600G-52TS provides you the ideal network solution.
