| Essentials |
| Product Collection |
12th Generation Intel® Core i3 Processors |
| Code Name |
Products formerly Alder Lake |
| Vertical Segment |
Desktop |
| Processor Number |
i3-12100F |
| Status |
Launched |
| Lithography |
Intel 7 |
| Use Conditions |
PC/Client/Tablet |
| CPU Specifications |
| Total Cores |
4 |
| # of Performance-cores |
4 |
| # of Efficient-cores |
0 |
| Total Threads |
8 |
| Max Turbo Frequency |
4.30 GHz |
| Performance-core Max Turbo Frequency |
4.30 GHz |
| Performance-core Base Frequency |
3.30 GHz |
| Cache |
12 MB Intel® Smart Cache |
| Total L2 Cache |
5 MB |
| Processor Base Power |
58 W |
| Maximum Turbo Power |
89 W |
| Supplemental Information |
| Embedded Options Available |
No |
| Memory Specifications |
| Max Memory Size (dependent on memory type) |
128 GB |
| Memory Types |
- Up to DDR5 4800 MT/s
- Up to DDR4 3200 MT/s
|
| Max # of Memory Channels |
2 |
| Max Memory Bandwidth |
76.8 GB/s |
| Expansion Options |
| Direct Media Interface (DMI) Revision |
4.0 |
| Max # of DMI Lanes |
8 |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations |
Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes |
20 |
| Package Specifications |
| Sockets Supported |
FCLGA1700 |
| Max CPU Configuration |
1 |
| Thermal Solution Specification |
PCG 2020C |
| TJUNCTION |
100°C |
| Package Size |
45.0 mm x 37.5 mm |
| Advanced Technologies |
| Intel® Gaussian & Neural Accelerator |
3.0 |
| Intel® Thread Director |
No |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Optane Memory Supported |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Max Technology 3.0 |
No |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Hyper-Threading Technology |
Yes |
| Intel® Virtualization Technology (VT-x) |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® 64 |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
| Security & Reliability |
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Execute Disable Bit |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
| Warranty |
3 Year Warranty From Manufacturer |
Features:
- Intel 7 Alder Lake Processor Base Power: 58W
- Maximum Turbo Power: 89W
- 12MB L3 Cache
- 5MB L2 Cache
- Windows 11 Supported
- Intel Laminar RM1 CPU Cooler3

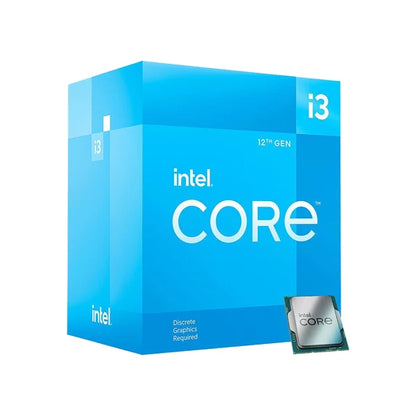

Intel Core i3-12100F
With 4 cores (8 threads), 4.30 GHz Max Turbo frequency, and based on Intels new micro architecture, the Core i3-12100F delivers amazingly smooth performance for a variety of home and office applications. Its also future-proof with PCIe 5.0 and DDR5 support, making it well ready for next gen graphics and memory.
Revolutionary performance and multitasking.
With the highest clock speeds and a groundbreaking new architecture, youll be able to push your gameplay to new heights while secondary apps run seamlessly in the background.
- Up to 4.3 GHz Max Clock Speed
- 4 Cores, 8 Threads
Performance beyond the cores.
The new processor architecture is also compatible with the latest platform innovations, giving you performance improvements throughout your PC.
- Support for PCIe Gen 5 and DDR5 for high-performance components like memory and graphics.
- Thunderbolt 4 and Intel Killer Wi-Fi 6/6E (Gig+) deliver fast transfer speeds and connections to peripherals.
