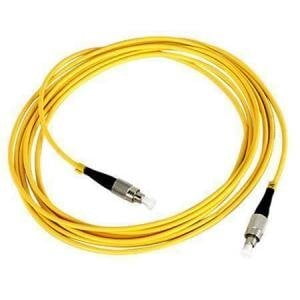

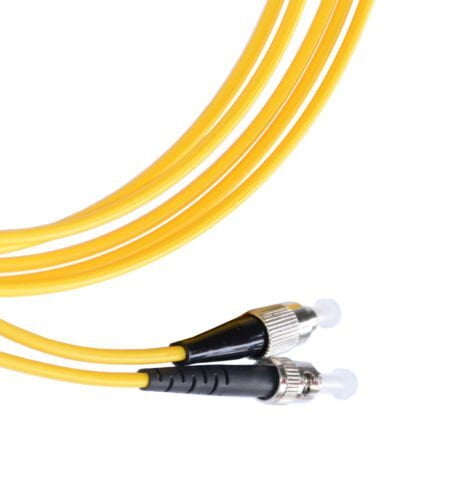

FC/UPC-FC/UPC Simplex OS2 9/125 SMF Fiber Patch Cable
Item Specifications:
| Connector |
FC to FC |
Polish |
UPC to UPC |
| Fiber Mode |
OS2 9/125μm SM |
Jacket OD |
2.0mm; 3.0mm |
| Fiber type |
Simplex |
Wavelength |
1310/1550nm |
| Cable Length |
1m-30m |
Jacket Color |
Yellow |
| Cable Jacket |
PVC |
Repeatability |
<=0.1dB |
| Insertion Loss |
<=0.3dB |
Durability |
<=0.2dB(1000 Times mating) |
| Return Loss |
>=50dB |
Operate Temperature |
-40~75°C |
Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE
compact design
IEC,JIS,TELCORDIA-326 compliance
Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
Specifications:
Insertion Loss: Typical‰¦ 0.2dB, Maximum‰¦0.3dB
Return Loss :‰§50dB (PC/UPC); ‰§65dB (APC)
Repeatability: ‰¦0.1
Durability ‰¦0.2dB typical change, 1000 matings
Interchangeability: ‰¦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85„ƒ
Description:
The 9/125
