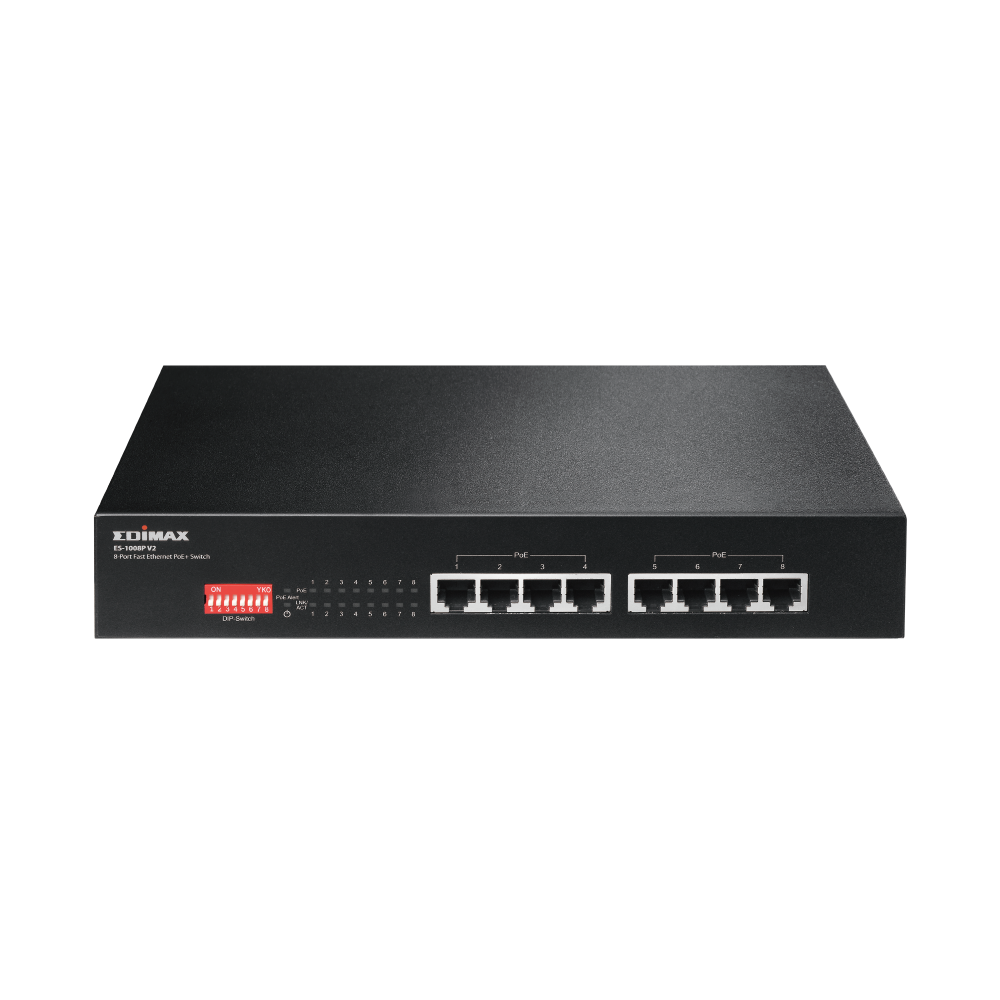

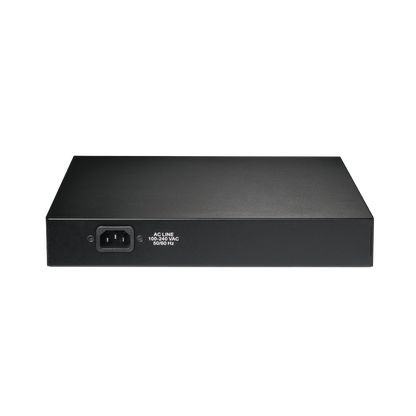

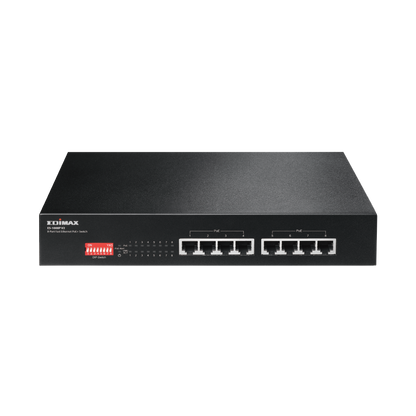

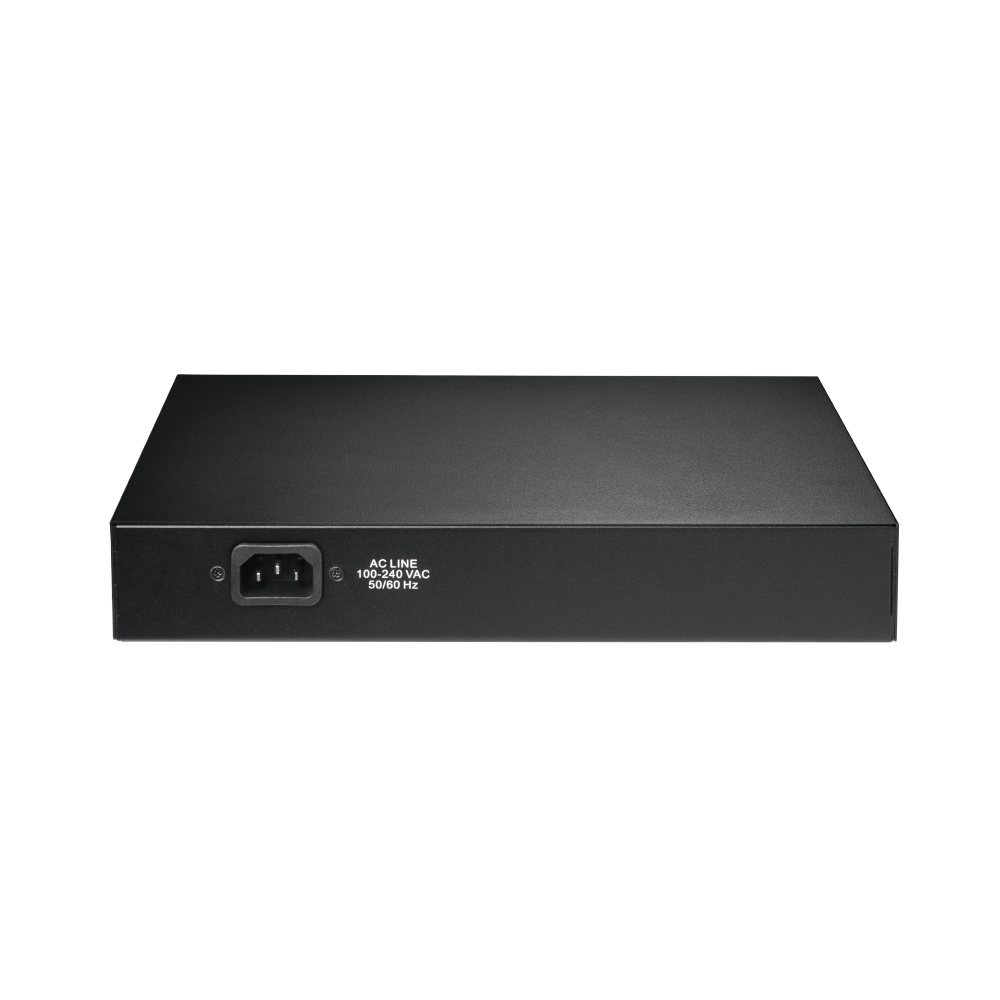

Edimax ES-1008P V2 8-Port 10/100Mbps Fast Ethernet PoE+ Switch

Ideal for powering and connecting multiple PoE-enabled devices with ease, this compact switch offers reliable performance and flexibility for network deployments.

Key Features:

• 8 x 10/100Mbps Fast Ethernet PoE+ Ports: Supports IEEE 802.3af/at PoE standards, delivering data and power through a single Ethernet cable for up to 8 devices.

• Up to 30W Per PoE Port:Each port provides up to 30W of power (total power budget: 130W) to power PoE-enabled devices such as IP cameras, access points, phones, and more.

• Auto-detection of Powered Devices (PD):Automatically detects the power requirements of connected devices, ensuring optimal power delivery based on their consumption levels.

• Extended Range with “Extend” Mode:Use the “Extend” mode to boost the PoE transmission distance up to 200 meters at a reduced speed of 10Mbps, perfect for long-distance installations.

• Hardware DIP Switch for Mode Selection:Easily switch between “Standard” and “Extend” modes via a DIP switch, allowing you to adjust settings based on your specific network needs.

• Port-based VLAN Support:Segregate and manage network traffic efficiently with port-based VLAN functionality, improving performance and security.

• Loop Protection:Protect your network from broadcast storms and loops, ensuring stable and reliable connections.

• 802.1p Quality of Service (QoS):Prioritize network traffic for smooth, uninterrupted operation of critical applications such as VoIP or video surveillance.

Ideal For:

• IP Cameras
• Wireless Access Points
• VoIP Phones
• Networking Equipment
